ASYMTEK // Conformal Coating System
With the Select Coat® SL-1040, we’ve retained the time-tested functionality of the Select Coat SL-940 and added significant system-level advancements to elevate automation, control, precision, and preventative maintenance for better yield and uptime.

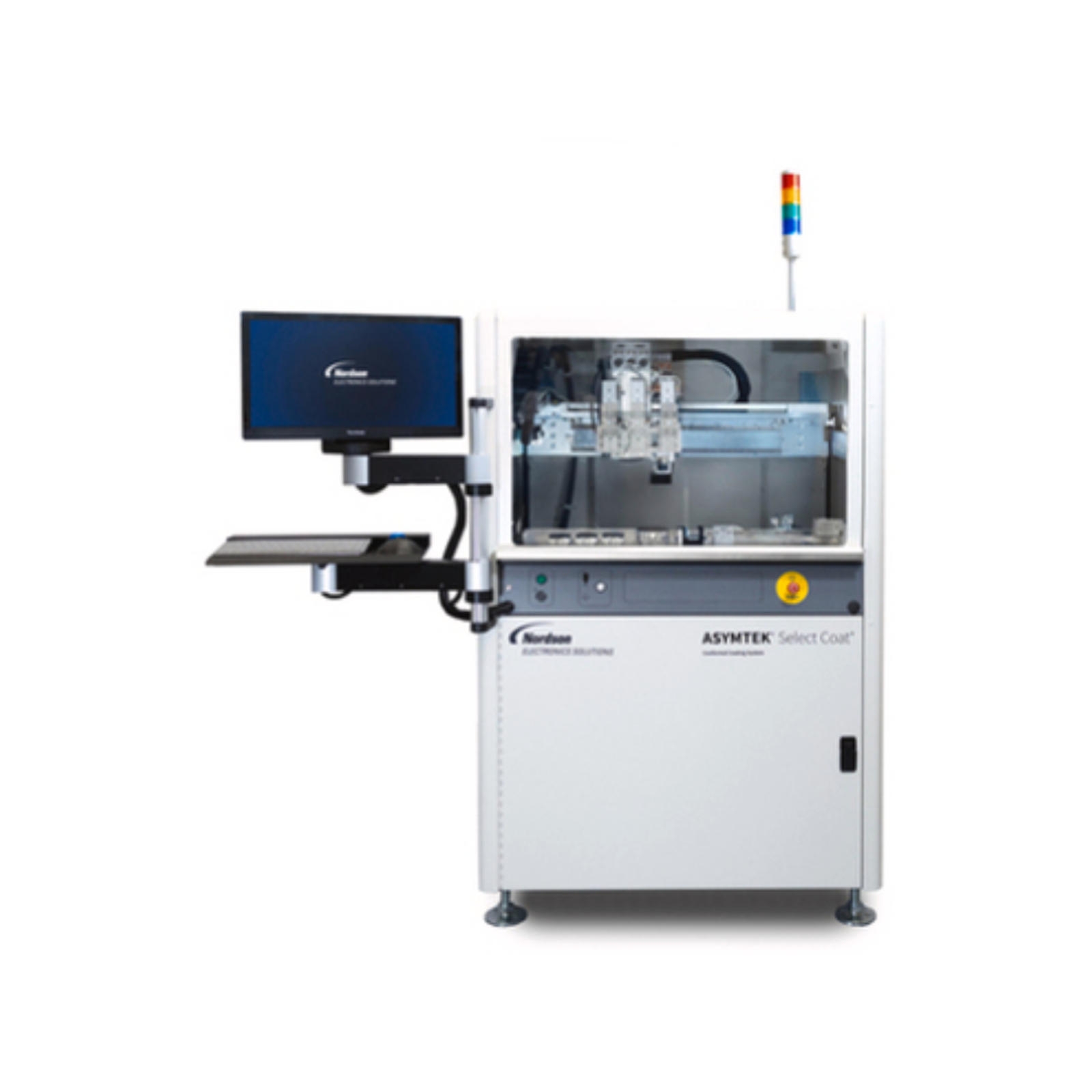

When you can’t go back and fix it, you need to get it right the first time. The ASYMTEK Select Coat® SL-1040 conformal coating system pairs new preventive maintenance features with the ASYMTEK SC-450 PreciseCoat® Jet and enhanced ASYMTEK EasyCoat® 6 software to deliver next-level conformal coating solutions for high-volume production.
With a completely new Ultrasonic Cleaning Station (patent pending), greater platform accuracy of +/- 100 µm, Cmk ≥ 1.67, enhanced selectivity, and flexibility to handle any application on the board, the SL-1040 is your answer to improved yield and uptime.
Stay Spotless, Run Flawless. Get Re-Moving with Ultrasonic Cleaning!
The groundbreaking Select Coat SL-1040 Ultrasonic Cleaning Station, programmable through EasyCoat 6 software, uses cavitation bubbles induced by high-frequency pressure waves to agitate solvent and thoroughly remove material build-up adhering to nozzles and needle tips without brushing. A powerful, non-invasive clean that won't harm your equipment and removes build-up that "static" cleaning methods can't touch. This preventative maintenance approach stops issues before they occur to sustain a smooth, high-yield operation.
You decide when valves are cleaned: before starting idle, at the start of a program, after idle, or periodically. When an valve tip is inserted into the cleaning station at the designated time, the cleaning cycle starts, and high-frequency pressure waves agitate the solvent to clean the valve.
The Ultrasonic Cleaning Station is integrated with the self-leveling solvent system to maintain the correct solvent level automatically. When the solvent level is low, the system sends a refill notification via the software. A user-defined "grace period" allows the system to continue running until an operator completes the refill.
